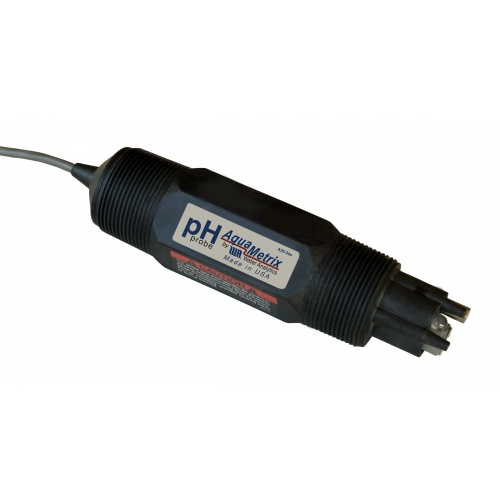

Direct 4-20mA pH sensor

Product details

  In the current trend of sustainability, in parallel with the development of the production plant, it is also necessary to protect the environment. One of the key environmental indicators of the plant is the pH reading of wastewater and water supply. Understanding the needs of customers, our Origin Pipe company has launched a 4-20mA output pH sensor that is imported from the USA at an affordable price and quality assurance.

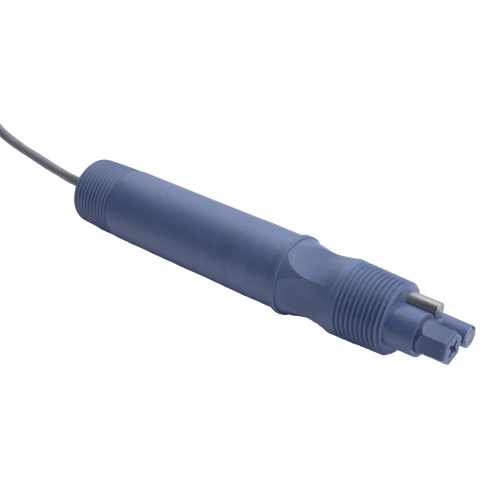

  The pH and ORP sensors of the 65 series are the latest industrial - grade sensors based on the legendary differential circulation of AquaMetrix. The 65 Series offers a 4-20 mA two-wire transmitter packaged for direct supply to PLC or DCS. This is available in all different body sizes including the 1.5 ″ R8 sensors and 1 ″ R5 sensor.

Feature:

• Integrated two-wire transmitter
• The integrated 4-20mA transmitter can be supplied directly to the PLC
• Differential measurement for accuracy and minimization of ground loops
• Salt bridges are replaceable and reference solutions for extended life.
• Built-in pre-amp supports distances up to 3,000 ′ sensors to the analyzer or pH transmitter
• Flow or submersible installation
• Temperature compensation device
• Two-year warranty

Applications:

• Process control
• Treatment of industrial and municipal water
• Treating and neutralizing industrial and municipal waste
• Smoke filter
• Plating
• Manufacturing circuit boards
• Food and drink
• Chemical treatment
• Pulp and paper
• Mining
• Power production
• Pharmaceutical industry
